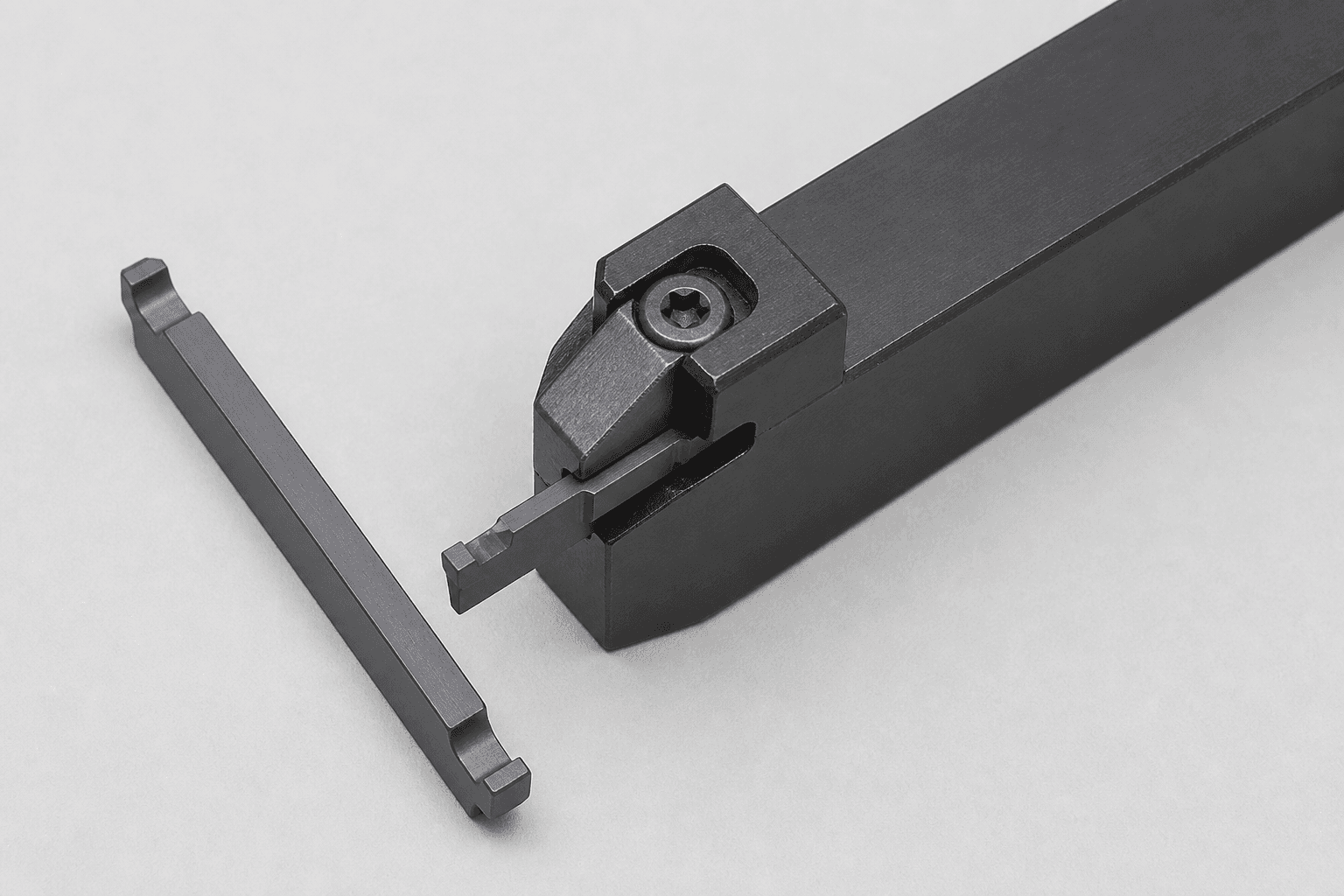

Grooving Tools
Insert clamping stays rigid at depth, which is exactly where grooving normally fails. Blades, cartridges and monoblock holders share one insert seat, so you are not carrying three separate inventories.
- Steel
- Stainless steel
- Cast iron
- Non-ferrous
- Superalloys & titanium
- Hardened materials
Why this range
- Widths 0.5 – 8 mm, depths to 40 mm
- External, internal, face and circlip grooves
- One insert seat shared across holder types
At a glance
- Series
- VC-GR
- Family
- Turning
- ISO coverage
- Steel
- Stainless steel
- Cast iron
- Non-ferrous
- Superalloys & titanium
- Hardened materials
- Recommended grades
- VC1015VC1025VC4005
Specifications
| Parameter | Value |
|---|---|
| Groove width | 0.5 – 8.0 mm |
| Depth of cut | up to 40 mm |
| Insert size | Single- and double-ended |
| Coolant supply | Over and under the insert, to 80 bar |
| Clamping system | Self-clamping spring seat |
Applications
- Grooving
- Parting off
- Thread turning
- Profiling
ISO material coverage
Application windows this family is specified into. Grade selection narrows within them.
- P
Steel
Unalloyed to high-alloy steel, cast steel
- M
Stainless steel
Austenitic, ferritic, duplex and super duplex
- K
Cast iron
Grey, nodular, malleable and compacted graphite iron
- N
Non-ferrous
Aluminium, copper alloys, brass, plastics
- S
Superalloys & titanium
Nickel and cobalt alloys, titanium, tungsten alloys
- H
Hardened materials
Hardened steel 45 – 65 HRC, chilled cast iron
Recommended grades
Grades released for this family, with their position on the toughness and wear-resistance axis.
VC1015
PMPVD TiAlN
- Toughness
- 72
- Wear resistance
- 58
VC1025
PMSPVD AlTiN
- Toughness
- 64
- Wear resistance
- 70
VC4005
NSUncoated ultra-fine
- Toughness
- 80
- Wear resistance
- 44
